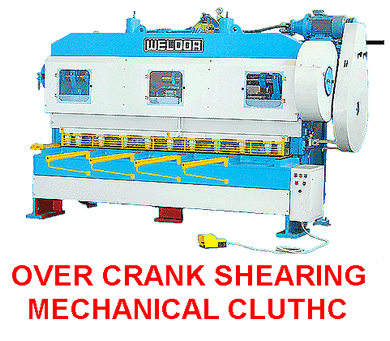

OVER CRANK SHEARING MACHINE MECHANICAL / PNEUMATIC CLUTCH
WELDOR Guillotine Shearing Machines have been designed & developed through
structural analysis technique for continuous production, accuracy and repeatability.
FRAME : Rigid steel frame of Weldor Shears are optimally designed to avoid weak
sections and is of interlocked design. The ram is guided throughout its length by
accurate machined guideways ensuring proper clearance and clean cut.
CLUTCH, BRAKE & DRIVE : Revolving Key Clutch linked with the Main Gear engages
every time when foot pedal is pressed. Drive provided through V-Belt & all journals
are fitted in Gun-Metal Bearings. Brake is adjustable and incorporated on end of
Crank Shaft.
HOLD - DOWN SYSTEM : Hydraulic Hold down pads are actuated by Hydraulic power
pack / cam operated pump. Hydraulic hold down pads hold the sheet securely to
avoid slipping and bowing resulting in clean square cut. Hold down units are
provided with oversize pads to avoid impressions on sheet metal on request.
BLADES : Weldor Shears are provided with high quality single segment (HcHcr)
Blades for longer tool life. Ease in assembling of knife reduces down - time, The
shear blades are four edged.
LUBRICATION : All bearing parts and guide surfaces are lubricated through hand
-operated lubrication system.
MECHANICAL BACKGAUGE : This is a standard equipment provided on all Weldor
shears. Scale on the backgauge gives instantaneous reading of distance between
shear and back gauge, thus avoiding errors and maintenance encountered in
electronic equipment.
FINGER GUARD : fitted in front of hold - down for operator protection without
obstructing viewing.
STANDARD ACCESSORIES :
OPTIONAL ACCESSORIES :
Gear & wheel guard
Hand operated back gauge
Manual lubrication system
stroke counter
T - slot front supporters
Front
Scale Gauge
Hydraulic Hold down & lnstruction Manual.
Automatic Lubrication system
Electricals consist of Electric
Motor
Control panel
V - belts
ball roller or ball transfer
N.C. Backgauge
Extension squaring arm
Foundation bolts
Motorised Back gauge with DRO.
POWER SUPPLY :
400/440 Volts, 3 Phase, 50 Cycles.
All dimensions are in mm
PNEUMATIC CLUTCH & BRAKE : Electrically controlled & Air operated
Clutch & brake combine unit permits
high frequency of operation and more
flywheel energy for work. Wear on
Clutch & Brake is automatically compen
sated & no adjustment is necessary.
Surge Tank, Filter, Regulator, Air
Lubrication Unit, Pressure Switch etc.
are incorporated. Pneumatic Counter
Balancer are provided to Counter the
Weight of Slide & Tooling which helps
in taking up the Bearing clearances
and ease Slide adjustment.
Note: Specifiation / Design are
subject to change without prior notice.
