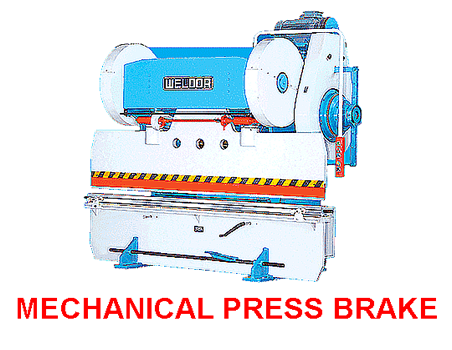

MECHANICAL PRESS BRAKE

Weldor Press Brakes are designed and developed through years of experience in sheet metal working machines. Weldor Press Brakes are widely accepted in industries for continuous production runs and in areas requiring accuracy and repeatability coupled with high production.

1. Frame: Frame is of robust steel construction of rigid and interlocked design. It is stain-free and supports the ram and bed against undesired deflection under permissible load condition.

2. Ram and bed: Made from steel plates of suitable thickness. machined for straightness and parallelism of the working surface. Ram is guided and supported throughout the stroke by accurately machined guideways.

3. Drive System: Power is transmitted to the ram through two individual gear drives for uniform load distribution throughout the length. This also reduces the torsional stresses on the eccentric shaft. The gear and pinion are made out of carbon/alloy steel.

4. Ram adjustment: Motorized ram adjustment through a simple drive mechanism, facilitates quick bending angle adjustment. Angular ram adjustment is made simple by incorporating a spring loaded dog clutch.

5. Clutch and brake: All series of press brakes are provided with high-torque low-inertia friction clutch, synchronized with heavy duty mechanical brake ensuring immediate braking of ram on releasing the pedal. Clutch operating levers are designed in such a way that minimum, engaging force is required at the pedal.

Electrically controlled & Air operated Clutch & Brake combine unit permits high frequency of operation and more Flywheel energy for work. Wear on Clutch & Brake is automatically compensated & no adjustment is necessary. Surge Tank, Filter, Regulator, Air Lubrication Unit, Pressure Switch etc. are incorporated. Pneumatic Counter Balancer are provided to Counter the Weight of Slide & Tooling which help in taking up the bearing clearances and ease Slide adjustment.

SPECIAL FEATURES :
Connection link mounted on crank shaft for uniform load separate Drive system for each connection link
Sufficient H.P. Normal torque motors provided Boltless pedal mounted on hexagonal bar General purpose V-Block and punch supplied as standard accessories.

STANDARD ACCESSORIES :
Standard V-block and Punch Back Gauge Motor pulley Motor Mounting Bracket Peda Flywheel & Gear Guards Stroke Counter Manual Lubrication & lnstruction Manual.

OPTIONAL ACCESSORIES :
Automatic Lubrication System Goose Neck Punch, & other toolings (Drawing required) Electrical consist of Electric Motor Wiring Control Panel V-belt Push Button Pendent (For model WP-O Electric Motor V-belt Main switch and Reversible Switch).

Note: WP-O is Single geared type Machine Electricals are not under Warranty.

Capacities Available:
